Portofino I12 T620
Philips Italy; Milano (MI)
- Country
- Italy
- Manufacturer / Brand
- Philips Italy; Milano (MI)
- Year
- 1970 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 352702
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A31-20W
- Number of Transistors
- 29
- Semiconductors
- AF239 unknown_tr BF194 BF196 BF195 BF115 AC127 AC128 BF178 AU110 BC186 AD149 AA119 OA90 OA91 OA81 BY118 TV20 BA148 BYX10 AAZ15 BY127
- Main principle
- Superhet with RF-stage; ZF/IF 38900/5500 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / AC: 220 / DC: 12 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portofino I12 T620 - Philips Italy; Milano MI
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 376 x 284 x 287 mm / 14.8 x 11.2 x 11.3 inch
- Notes
-

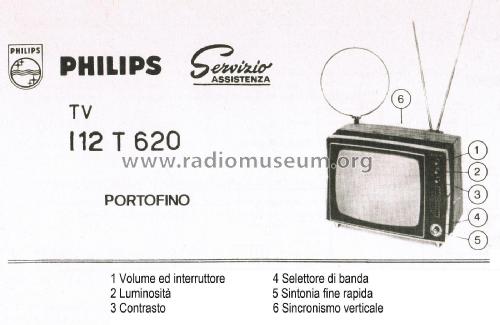

Televisore portatile completamente a transistor con VHF e UHF. Cinescopio da 12 pollici rettangolare con deflessione 90°.
Funzionamento con la rete elettrica o con accumulatori da 12 VDC.
Questo apparecchio ha subìto 2 versioni nelle quali non sono stati sostituiti i semiconduttori, ma sono state fatte piccole modifiche al circuito elettrico.29 Transistor, 15 Diodi e 2 Diodi Raddrizzatori, tutti elencati uno per tipo.
- Mentioned in
- -- Schematic (Schemario TV Philips Service, Edizioni CELI 1972.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
