Primus Bi170A

Primus Bi170A; Philips Italy; (ID = 632871) Radio

Primus Bi170A; Philips Italy; (ID = 632874) Radio
Primus Bi170A; Philips Italy; (ID = 125220) Radio Primus Bi170A; Philips Italy; (ID = 125221) Radio
Primus Bi170A; Philips Italy; (ID = 125222) Radio Primus Bi170A; Philips Italy; (ID = 443686) Radio
Primus Bi170A; Philips Italy; (ID = 443687) Radio Primus Bi170A; Philips Italy; (ID = 2206389) Radio
Primus Bi170A; Philips Italy; (ID = 2206390) Radio
Use red slider bar for more.
Primus Bi170A; Philips Italy; (ID = 125220) Radio
Philips Italy;: Primus Bi170A [Radio] ID = 125220 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Primus Bi170A, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF89 UBC81 UL84 UY42 or UY41
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 145, 160, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: Primus Bi170A - Philips Italy; Milano MI
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 310 x 180 x 150 mm / 12.2 x 7.1 x 5.9 inch
Notes Mobile in diverse varianti di colore. Serie ANIE. A circuito stampato.

Autotrafo, keine Netztrennung !!!

Source of data Guida Pratica Antique Radio (1) 1999

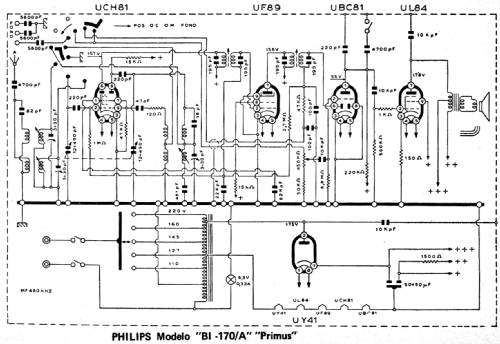

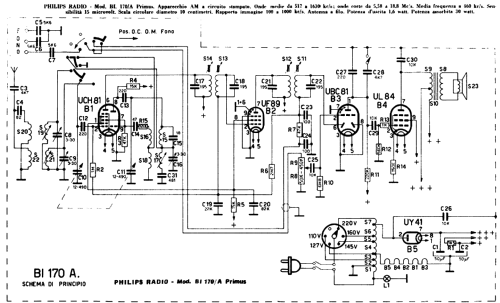

Literature/Schematics (1) -- Schematic

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
