• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182868

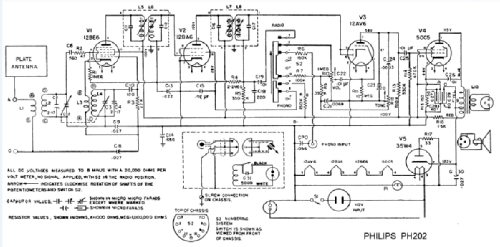

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radio Phonograph Combination PH202 - Philips Canada

• Shape
• Console with any shape - in general

• Notes

• Philips PH202 Radio Phonograph Combination;
  Compare with Rogers-Majestic/Philips RM602.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 30 page 86)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
