• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1955 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 317838

• • Brand: Deutsche Philips-Ges.

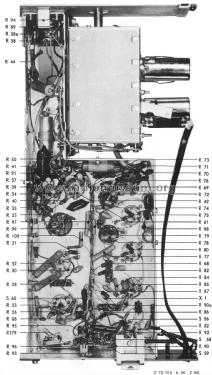

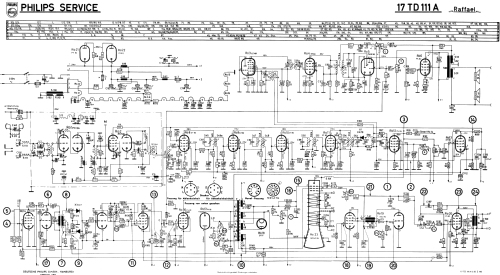

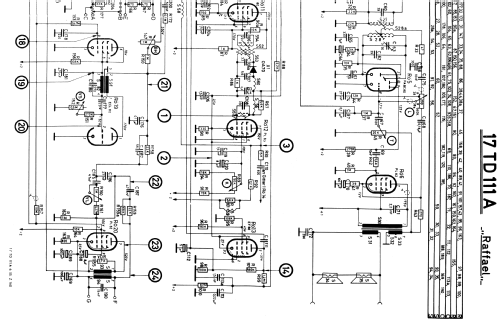

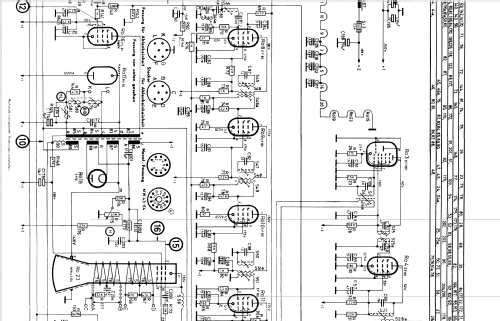

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC84 PCF80 ECH81 EF80 PABC80 PL82 EF80 EF80 EF80 EF80 PL83 EF80 ECL80 ECL80 PL81 PY81 EY51 ECL80 PL82 PY82 PY82 MW43-64

• Number of Transistors

• Semiconductors
• OA71 OA71 OA70

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Raffael 17TD111A - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Notes

• FS-Band I und III

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
