For model Raffael 17TD111A-01, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1953–1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 22: PCC84 PCF80 ECH81 EF80 PABC80 PL82 EF80 EF80 EF80 EF80 PL83 EF80 ECL80 ECL80 PL81 PY81 EY51 ECL80 PL82 PY82 PY82 MW43-64
Semiconductors (the count is only for transistors) OA50 or. OA71 OA50 or. OA71 OA60 or. OA70
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Raffael 17TD111A-01 - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 520 x 480 x 470 mm / 20.5 x 18.9 x 18.5 inch
Notes

Das Modell Raffael 17TD111A-01 der "Deutsche Philips GmbH Apparate Fabrik Krefeld" ist für das FS-Band I und III.

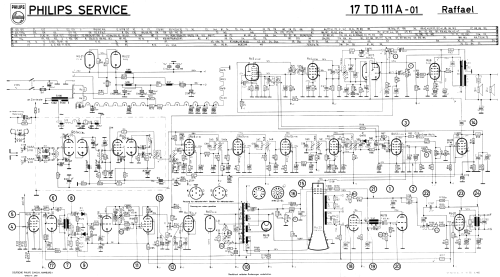

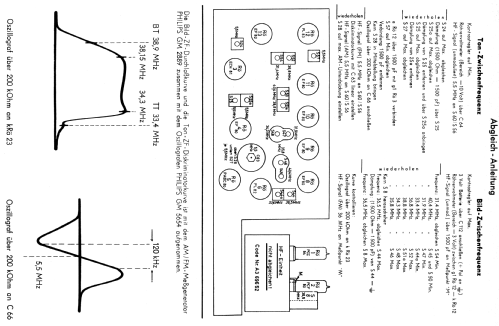

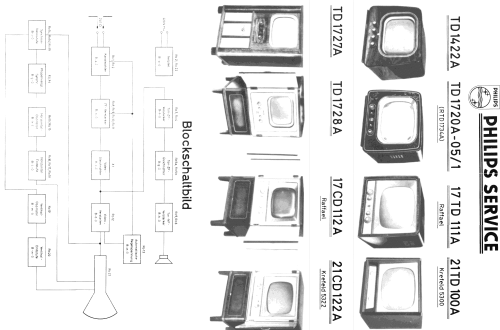

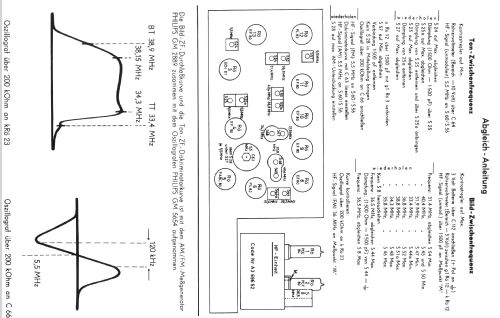

Einige Bauteile und ein Schema (d_philips_17td111a01_sch1a.pdf + d_philips_17td111a01_sch1b.pdf) tragen das Jahr 1953 -  An Halbleitern sind dort vorhanden: 2x Diode OA50, 1x Diode OA60.
Auf dem Schema kommt noch das Datum 1.8.1955 dazu. Das muss nicht heissen, dass das Modell Raffael 17TD111A-01 auch 1955 noch verkauft wurde, sondern kann auch bedeuten, dass eine Änderung (von 1953 oder 1954) erst dann nachgetragen wurde. Wir lassen also das Bis-Datum offen.

In dem Schaltplan "philips_17td111a01_sch2.pdf" von 11 55 sind folgende Dioden vorhanden: 2x Diode OA71, 1x Diode OA70.

Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Price in first year of sale 798.00 DM
Mentioned in HdB d.Rdf-& Ferns-GrH 1955/56
