RC-Generator GM2317

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1953–1955 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 102256

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF40 EF40 EL41 AZ41

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ OA70 (1954)]

• Number of Transistors

• Semiconductors
• OA56 or. OA70 8099Z

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: RC-Generator GM2317 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 330 x 230 x 210 mm / 13 x 9.1 x 8.3 inch

• Notes

• Philips RC generator model GM2317.

  Principle: Wien-bridge RC-oscillator using incandescent lamps as PTC resistor to stabilise loop gain and reduce distortion.

  Frequency range 20 Hz—250 kHz in 6 ranges.

  Output voltage 10 Veff to a load of 2000 ohms or higher.

  Other significant components: 4x OA56 or OA70 diodes as a signal rectifier for the output meter; The original documentation specifies OA56. In specimens from 1954 and later, OA70 is found.
  Diodes and lamps only listed once per type.

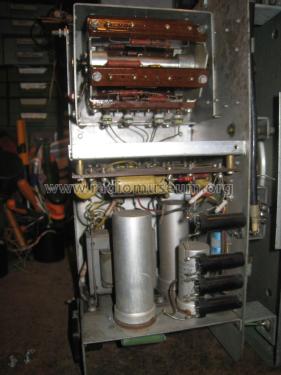

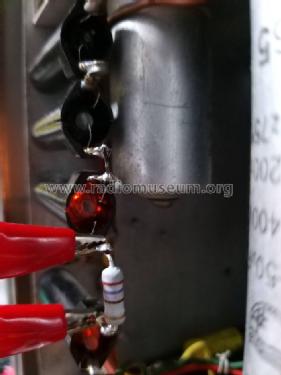

  The original schematic from 1953 shows 2x 8099Z incandescent lamps used as cathode resistor in the negative feedback loop. Most or all models found have different circuitry, using 4x 8099Z incandescent lamp in the positive feedback loop, a circuit that is also found in the successor models GM2317/01 and later, but using Noval valves. This improved circuit is found in GM2317 specimens from 1954 and later and may have been used even earlier.

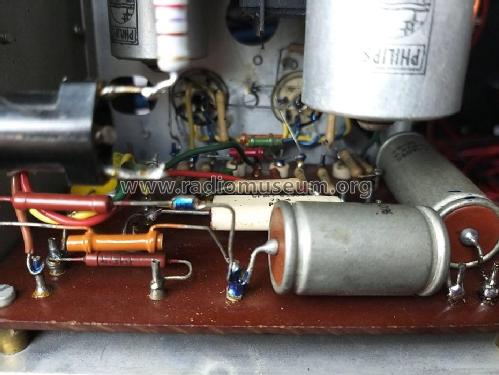

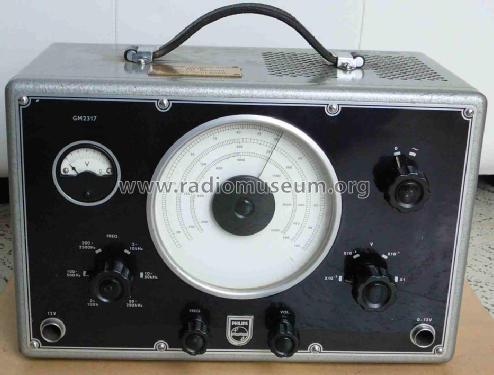

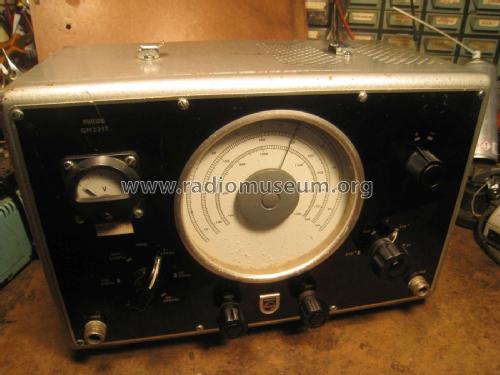

  The round output meter with white round stripe is a recognisable feature of the GM2317. The more modern successors have square output meters.

  See also GM2317/01, GM2317/02, GM2317/03, GM2317/04.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Mentioned in

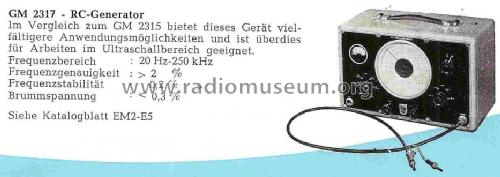

• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
