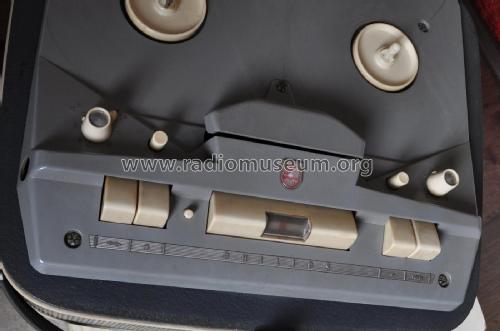

RK30 EL3515D /32a

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1959/1960

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 164818

• • Brand: Deutsche Philips-Ges.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC83 ECL82 EZ80 EM84

• Number of Transistors

• Semiconductors
• OA85

• Main principle
• Audio-Amplification

• Wave bands
• - without

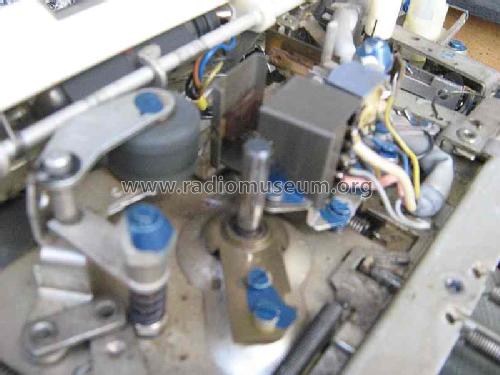

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.6 cm = 3.8 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: RK30 EL3515D /32a - Philips Radios - Deutschland

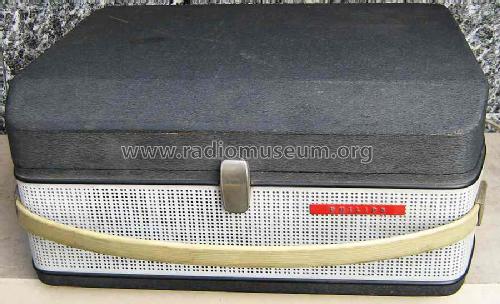

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 400 x 175 x 345 mm / 15.7 x 6.9 x 13.6 inch

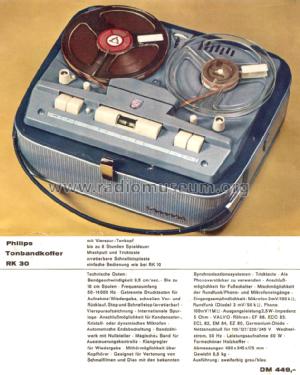

• Notes

• 3 Ausführungen:
  EL3515/32a (PW 00) = 4-Spur-Tonbandgerät im Koffer mit Tricktaste (Abschaltung des Löschkopfes)
  EL3515/32a (PW 01) = 4-Spur-Tonbandgerät im Koffer mit Spurparallelschaltung
  EL3515/32c = 4-Spur-Tonbandgerät in Kunststoffkassette mit Spurparallelschaltung. Bandgeschwindigkeit: 9,5 cm/sec. Frequenzumfang: 50-14000 Hz. Bis zu 18 cm Spulen.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 449.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
