• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1958

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 121620

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC83 ECC83 EL84 EM84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 inch = 27.9 cm

• Power out
• 3.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

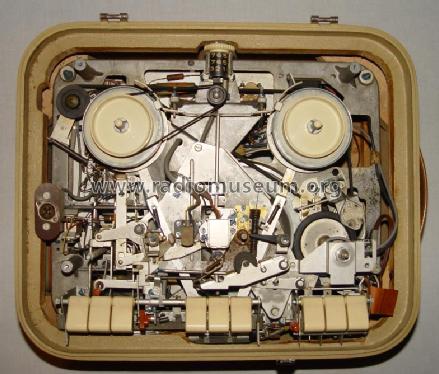

• Model: RK40 EL3522/22a - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 330 x 205 mm / 15.7 x 13 x 8.1 inch

• Notes
• 2-Spurgerät, Geschw. 4,75/9,5/19 cm/sec

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Mentioned in
• - - Data from my own collection

• Author
• Model page created by Wilfried Winter. See "Data change" for further contributors.
