RK50 EL 3522/24a

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1960–1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 24225

• • Brand: Deutsche Philips-Ges.

• Picture

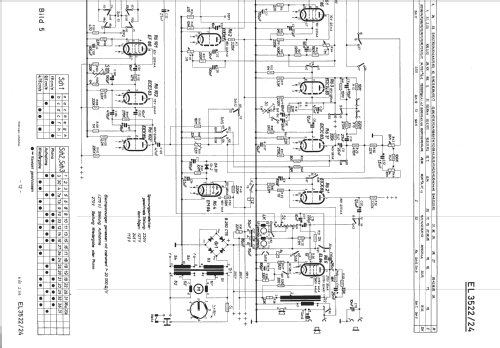

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF86 EF86 ECC83 ECC83 EM84 ECC83 EL84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: RK50 EL 3522/24a - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 220 x 330 mm / 15.7 x 8.7 x 13 inch

• Notes
• Vierspur; Bandgeschwindigkeiten: 4,75/9,5/19 cm; Spulen-Ø 18 cm.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 639.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61
