Royal Automatic 21TA311A /00 Ch= S7

Royal Automatic 21TA311A /00 Ch= S7; Philips - Österreich (ID = 212694) Television

Royal Automatic 21TA311A /00 Ch= S7; Philips - Österreich (ID = 212695) Television

Royal Automatic 21TA311A /00 Ch= S7; Philips - Österreich (ID = 251502) Television
Royal Automatic 21TA311A /00 Ch= S7; Philips - Österreich (ID = 1943369) Television
Use red slider bar for more.
Royal Automatic 21TA311A /00 Ch= S7; Philips - Österreich (ID = 1943369) Television
Philips - Österreich: Royal Automatic 21TA311A /00 Ch= S7 [Television] ID = 1943369 704x640

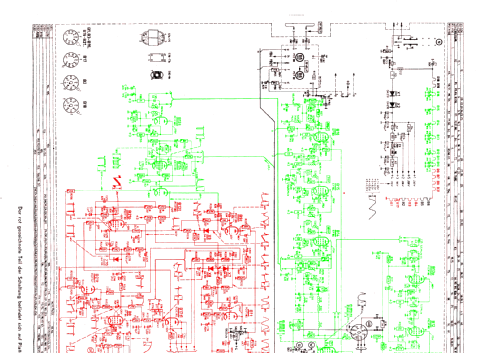

Select picture or schematic to display from thumbnails on the right and click for download.
For model Royal Automatic 21TA311A /00 Ch= S7, Philips - Österreich:
Bild aus Prospekt.

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC88 PCF80 EF183 EF184 EF184 PCL84 PCF80 PCF80 PL84 PCL82 PCF80 ECH83 PCF80 PF86 PCL82 PCF80 ECC82 PL36 PY88 DY87 AW53-88
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Royal Automatic 21TA311A /00 Ch= S7 - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 520 x 460 mm / 22.8 x 20.5 x 18.1 inch
Notes

Fernsehband VHF (I+III), UHF vorbereitet.

Paralleltype zum Horny WT2131A/00.

Net weight (2.2 lb = 1 kg) 27 kg / 59 lb 7.5 oz (59.471 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
