RT35 EL3531D/22Tc

Philips Radios - Deutschland

  • Year
  • 1961–1963
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 24616
    • Brand: Deutsche Philips-Ges.

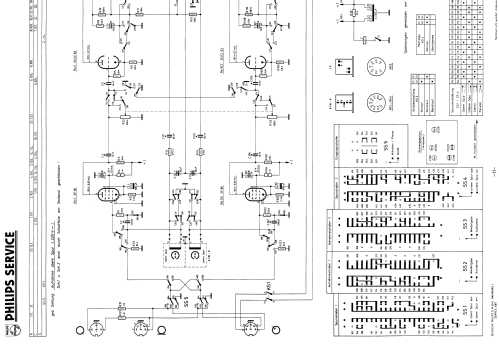

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 245 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org

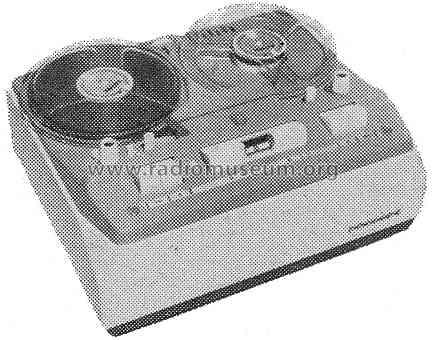

  • Model: RT35 EL3531D/22Tc - Philips Radios - Deutschland
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 358 x 165 x 297 mm / 14.1 x 6.5 x 11.7 inch
  • Notes
  • Dioden: 2× OA91.
    Vierspur Stereo; 9,5 cm/s. Spulen-Ø 18 cm.

    Philips EL 3531/22T (RT35)
    Das RT35 entspricht dem RK35, es ist jedoch ohne NF-Enstufe, Ausgangsübertrager und Lautsprecher


  • Net weight (2.2 lb = 1 kg)
  • 7.8 kg / 17 lb 2.9 oz (17.181 lb)
  • Price in first year of sale
  • 459.00 DM
  • External source of data
  • Erb
  • Mentioned in
  • - - Manufacturers Literature
  • Literature/Schematics (1)

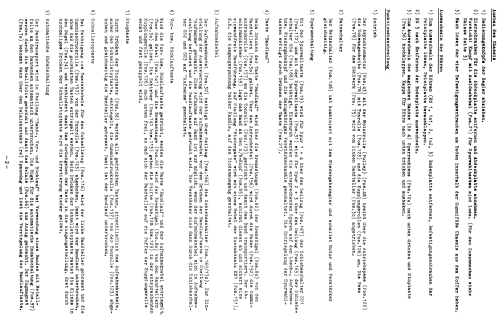

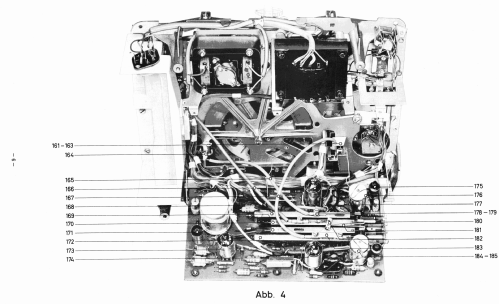

  • -- Original-techn. papers. (Service-Manual 8.61)

 Collections | Museums | Literature

Collections

The model RT35 is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips Radios -: RT35 EL3531D/22Tc

Threads: 1 | Posts: 3

 Habe die  Version RT35  von diesem Gerät erhalten.Es ist ein Gerät ohne Endstufe,hat nur Kopfhörerausgang 2x2kOhm. Die genaue Bezeichnung auf dem Typenschild heißt: EL3531D/22Ta. Bestückung ist: ECC81,2xEF86,2xECC83,EM84,2xOA91,Trockengleichrichter.Sollte es als neues Modell anglegt werden?Wer kann Angaben über die Antriebsriemen machen.Im Gerät befinden sich davon nur nur Reste im Aussehen,wie Lackritz-Bändchen.In den Kupplungsunterteilen sind auch nur noch zerbröselte Reste von Moosgummi o.ä.

 C.M.

Attachments

Claus Marker, 11.Mar.09
