• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7135

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH4 ECH4 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468-472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

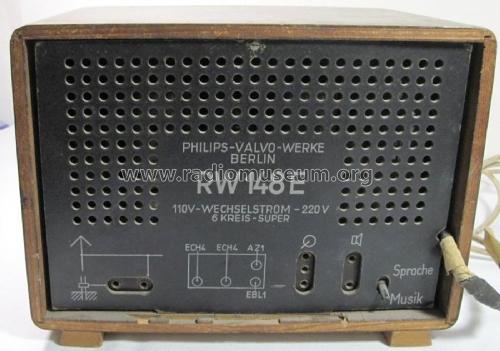

• Model: RW148E - Philips Radios - Deutschland

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 285 x 210 x 170 mm / 11.2 x 8.3 x 6.7 inch

• Notes

• Entwicklung: Laboratorium Klaus Heucke, Fertigung Philips Berlin.
  KW 1: 12,6...34 m
  KW 2: 30...90 m
  MW: 197...577 m.

  Wurde auf der Leipziger Frühjahrsmesse 1948 gezeigt.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 560.00 DM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funk-Technik (FT) (7/1948 S. 158 und 17/1948 S. 419f.)

• Literature/Schematics (1)

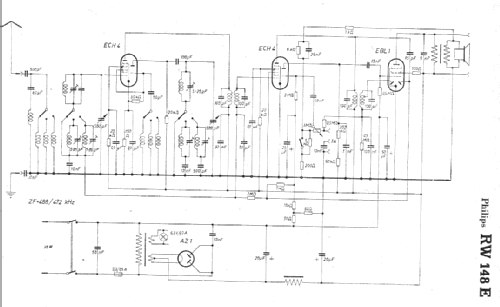

• -- Schematic

• Literature/Schematics (2)
• Funkschau (10/1948, S. 112)

• Literature/Schematics (3)
• Magazin "Natur und Technik", 1948, Heft 6, Seiten 294/295 [Messebericht]
