Sanremo 19TI500A-01

Sanremo 19TI500A-01; Philips Italy; (ID = 828283) Television

Sanremo 19TI500A-01; Philips Italy; (ID = 828284) Television

Sanremo 19TI500A-01; Philips Italy; (ID = 1009136) Television

Sanremo 19TI500A-01; Philips Italy; (ID = 1009137) Television

Sanremo 19TI500A-01; Philips Italy; (ID = 1009138) Television

Sanremo 19TI500A-01; Philips Italy; (ID = 1009139) Television

Sanremo 19TI500A-01; Philips Italy; (ID = 1009140) Television

Sanremo 19TI500A-01; Philips Italy; (ID = 1009141) Television

Sanremo 19TI500A-01; Philips Italy; (ID = 1009142) Television

Sanremo 19TI500A-01; Philips Italy; (ID = 1009143) Television
Sanremo 19TI500A-01; Philips Italy; (ID = 2610537) Television
Use red slider bar for more.
Sanremo 19TI500A-01; Philips Italy; (ID = 2610537) Television
Philips Italy;: Sanremo 19TI500A-01 [Television] ID = 2610537 894x1552
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sanremo 19TI500A-01, Philips Italy; Milano (MI):
Da: La Domenica del Corriere, 1967.

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1968 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: PCL85 PL500 PCF802 PCH200 PCL84 PCF200 PCF201 PCF801 PC900 PCL86 PL84 DY87 PY81 A47-11W
Semiconductors (the count is only for transistors) 3:
Main principle Superheterodyne (common); ZF/IF 45900/40400 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Sanremo 19TI500A-01 - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 420 x 330 mm / 22 x 16.5 x 13 inch
Notes

Adatto per la ricezione di emettitori funzionanti secondo le norme CCIR.
VHF: canali A ÷ H;
UHF: canali 21 ÷ 69.

Apparecchio privo di trasformatore di alimentazione. Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.



Mentioned in -- Original prospect or advert (La Domenica del Corriere, 1967)

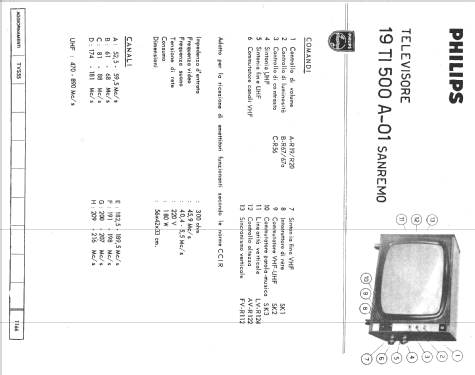

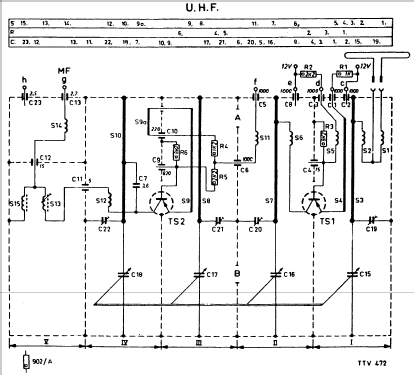

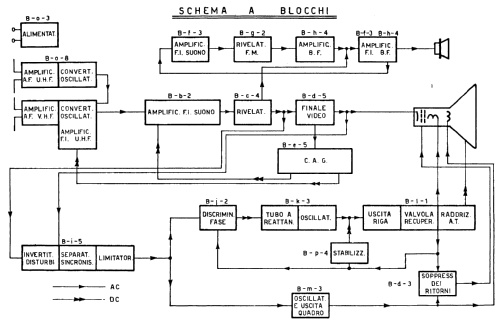

Literature/Schematics (1) -- Schematic

Model page created by Eduard Abfalterer. See "Data change" for further contributors.



All listed radios etc. from Philips Italy; Milano (MI)
Here you find 370 models, 306 with images and 229 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
