• Year
  • 1945/1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 71709

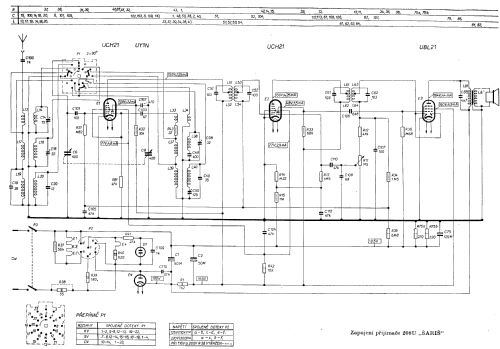

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13.5 cm = 5.3 inch
  • Power out
  • 1.8 W (unknown quality)
  • from Radiomuseum.org

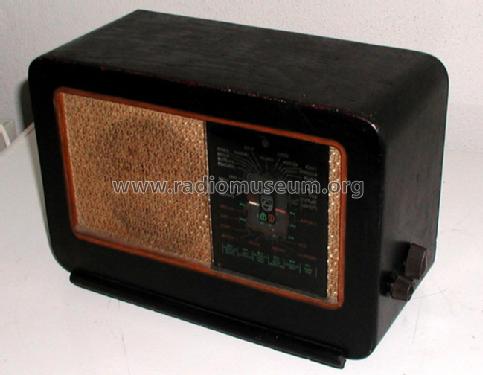

  • Model: Saris 208U-14 - Philips akc. spol., Praha-
  • Notes
  • Audio output power 0,6W only at 125V DC.
  • Author
  • Model page created by Gabriel Toth. See "Data change" for further contributors.
