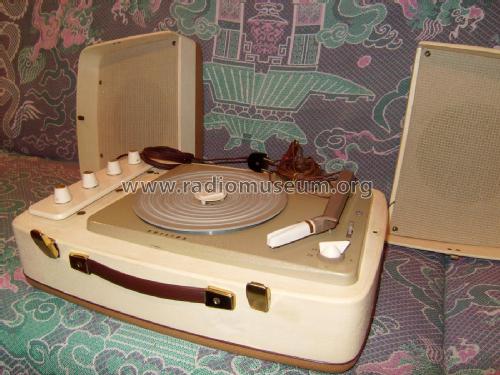

Stereo-Verstärkerkoffer SK100 NG1365 (SC40)

Philips Radios - Deutschland

  • Year
  • 1959–1964
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 24169
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 140; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 17 cm = 6.7 inch
  • Power out
  • 5 W (undistorted)
  • from Radiomuseum.org
  • Model: Stereo-Verstärkerkoffer SK100 NG1365 - Philips Radios - Deutschland
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 480 x 320 x 240 mm / 18.9 x 12.6 x 9.4 inch
  • Notes
  • Phono-Chassis = SC40; NF-Ausgangsleistung 2× 2,5 W.

  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • Price in first year of sale
  • 359.00 DM
  • External source of data
  • Erb
