Taschen-Recorder EL3300

ID = 25975

Taschen-Recorder EL3300; Philips - Österreich (ID = 443136) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 443137) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 443138) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 443139) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 740634) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 1336456) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 1336460) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 1336461) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 1336462) R-Player

Next schematics

{gbW: "1400", gbH: "1050", mW: "500", mH: "375", kb: "83 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Hannes Wurnitsch (1)", ite: "1"} {gbW: "1400", gbH: "1867", mW: "281.0", mH: "375", kb: "156 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Hannes Wurnitsch (1)", ite: "1"} {gbW: "1400", gbH: "1713", mW: "306.0", mH: "375", kb: "278 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Megan Taggart (1)", ite: "1"} {gbW: "1399", gbH: "1543", mW: "340.0", mH: "375", kb: "176 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Megan Taggart (1)", ite: "1"} {gbW: "1400", gbH: "473", mW: "500", mH: "168.0", kb: "58 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Megan Taggart (1)", ite: "1"} {gbW: "1400", gbH: "835", mW: "500", mH: "298.0", kb: "125 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Megan Taggart (1)", ite: "1"} {gbW: "1400", gbH: "868", mW: "500", mH: "310.0", kb: "241 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Megan Taggart (1)", ite: "1"} {gbW: "1400", gbH: "438", mW: "500", mH: "156.0", kb: "85 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Megan Taggart (1)", ite: "1"} {gbW: "1400", gbH: "854", mW: "500", mH: "305.0", kb: "218 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Megan Taggart (1)", ite: "1"} {gbW: "1400", gbH: "852", mW: "500", mH: "304.0", kb: "180 KB", notes: "For model Taschen-Recorder EL3300, Philips - Österreich", title: "Philips - Österreich Taschen-Recorder EL3300 from Megan Taggart (1)", ite: "1"}

Taschen-Recorder EL3300; Philips - Österreich (ID = 2121829) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 2121830) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 2581373) R-Player

Taschen-Recorder EL3300; Philips - Österreich (ID = 2581374) R-Player

Next pictures

Use red slider bar for more.

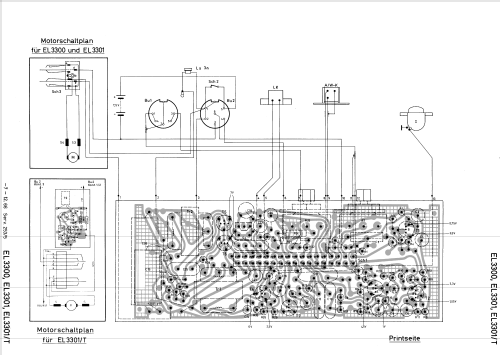

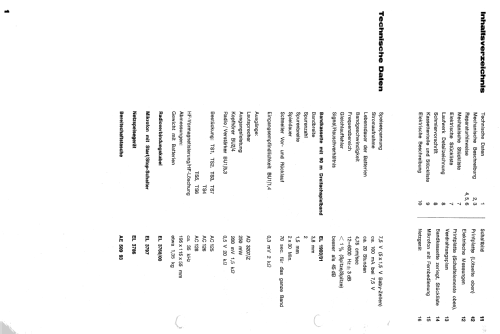

Philips - Österreich: Taschen-Recorder EL3300 [R-Player] ID = 2121829 1400x1050

Select picture or schematic to display from thumbnails on the right and click for download.

For model Taschen-Recorder EL3300, Philips - Österreich

Country:

Austria

Manufacturer / Brand:

Philips - Österreich

Year: 1964/1965

Category: Sound/Video Recorder and/or Player

Semiconductors (the count is only for transistors)

7: AC126 AC125 AC125 AC125 AC125 AC128 AC128

Main principle	Audio-Amplification
Wave bands	- without
Details	Cassette-Recorder or -Player
Power type and voltage	Dry Batteries / 5 x 1,5 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out	0.25 W (unknown quality)
from Radiomuseum.org	Model: Taschen-Recorder EL3300 - Philips - Österreich
Material	Modern plastics (no Bakelite or Catalin)
Shape	Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD)	113 x 56 x 196 mm / 4.4 x 2.2 x 7.7 inch
Notes	Weltweit erster in Serie gebauter Kompakter Kassettenrekorder. Vorgestellt am 28 August 1963 auf der Funkausstellung in Berlin. Originalmikrofon EL3797. Zubehör: Autohalterung EL3794 (80,- DM); Netzgerät EL3786 (59,- DM). Frequenzbereich: 120...6000 Hz, Dynamik ≥ 40 dB, Tonhöhenschwankungen (bewertet) ≤ 0,5 %. World's first mass-produced Compact Cassette tape recorder. Presented on 28 August 1963 at the radio exhibition in Berlin. Original microphone EL3797. Accessories: car holder EL3794 (80, - DM); Power supply EL3786 (59, - DM). Frequency range: 120 ... 6000 Hz, Dynamics ≥ 40 dB, Pitch variations (rated) ≤ 0.5%.
Net weight (2.2 lb = 1 kg)	1.350 kg / 2 lb 15.6 oz (2.974 lb)
Price in first year of sale	330.00 DM
External source of data	Erb
Source of data	Handbuch VDRG 1964/1965 / Radiokatalog Band 2, Ernst Erb
Mentioned in	Funkschau (4/1964, S. 97, 98, 99)
Literature/Schematics (1)	-- Original-techn. papers.
Literature/Schematics (2)	Funk-Technik (FT) (5/1964, S. 143 - 145 / Ausführliche Beschreibung, Daten, Schema)

All listed radios etc. from Philips - Österreich
Here you find 1055 models, 991 with images and 854 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Museum "International Vintage Electronics Museum"

Literature "Funk-Technik (FT)" Vol. 19 No. 5 | 1964-03

Collection of Hannes Wurnitsch (A)

Collection of Megan Taggart (GB)

Collection of José Pinto (P)

Collection of Giuseppe Duello (I)

Collection of Pier Antonio Aluffi (I)

Collection of Fabio Zannier (I)
