TX1410U-48

TX1410U-48; Philips; Eindhoven (ID = 834224) Television

TX1410U-48; Philips; Eindhoven (ID = 834225) Television

TX1410U-48; Philips; Eindhoven (ID = 834243) Television

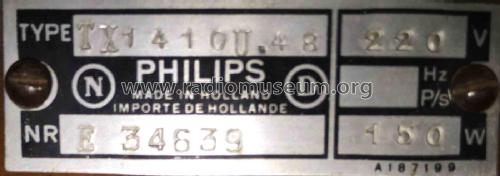

TX1410U-48; Philips; Eindhoven (ID = 2042107) Television TX1410U-48; Philips; Eindhoven (ID = 2042106) Television

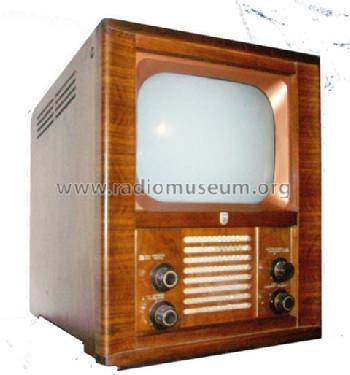

TX1410U-48; Philips; Eindhoven (ID = 819561) Television
Use red slider bar for more.
TX1410U-48; Philips; Eindhoven (ID = 2042107) Television
Philips; Eindhoven: TX1410U-48 [Television] ID = 2042107 1400x1602
Select picture or schematic to display from thumbnails on the right and click for download.
For model TX1410U-48, Philips; Eindhoven (tubes international!); Miniwatt:
Test chart of the first TV station of Argentina: "LR3 - Radio Belgrano - TV Canal 7" -

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1952 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 24: EF80 ECC81 EB91 PL83 EQ80 ECL80 PL81 PY80 EY51 PY82 MW36-24
Main principle Superhet with RF-stage; ZF/IF 21600 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
Power out
from Radiomuseum.org Model: TX1410U-48 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 540 x 480 mm / 17.7 x 21.3 x 18.9 inch
Notes Philips TX1410U-48 shares the same cabinet style with the German model TD1410U.
Each tube type listed once.
Gabinete tipo "doghouse".
Source of data - - Data from my own collection
Literature/Schematics (1) -- Schematic

Model page created by Aldo Canepa. See "Data change" for further contributors.
