TX400U; Philips; Eindhoven (ID = 2107403) Television
Philips; Eindhoven: TX400U [Television] ID = 2107403 1400x1671

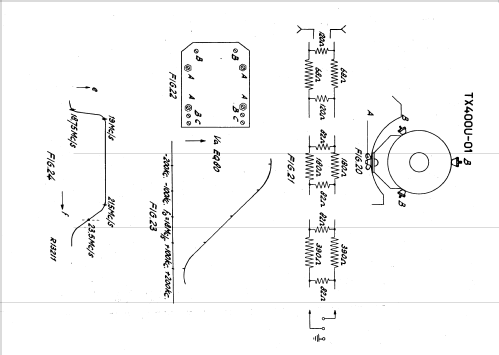

Select picture or schematic to display from thumbnails on the right and click for download.
For model TX400U, Philips; Eindhoven (tubes international!); Miniwatt:
Gerät steht im Philips Museum in Eindhoven.

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1950 Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: EF80 EF80 EF80 EF80 EF80 EF80 EQ80 EL42 EF80 EF80 EB91 EF80 PL83 ECL80 EB91 ECL80 ECL80 PL81 PY80 EY51 PY80 or PY82 PY80 or PY82 MW22-16
Conflicting model year with tubedata.
The model date contradicts tube dates. [ PY82 (1951)]
Main principle Super-Heterodyne (Super in general); ZF/IF 23500 kHz; 2 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TX400U - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 380 x 465 x 470 mm / 15 x 18.3 x 18.5 inch
Notes

This set can have two types of VHF tuners: a four channel assembly with 2 x EF80 or a ten channel assembly with ECC81 and EF80.

Early sets uses 2 x PY80 as power supply rectifiers, later replaced by 2 x PY82

Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Collectors' prices

Model page created by Michael Niermann. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4863 models, 4075 with images and 3251 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Philips; Eindhoven: TX400U
Threads: 1 | Posts: 1
Hits: 2301     Replies: 0
philips: TX400 (TX 400);
Michael Niermann
22.May.06
  1

Hier ein kleiner Hinweiß zu dem Schaltplan!



Es ist auch der Schaltplan, welcher zu dem Modell TX500 hochgeladen ist zu verwenden. In diesem ist das Gerät mit dem 4 Kanal Tuner ausgerüstet.



Viele Grüße,

Michael Niermann
