• Year
  • 1948 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 277073

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: unknown 3 band radio - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 250 x 155 mm / 15.7 x 9.8 x 6.1 inch
  • Notes

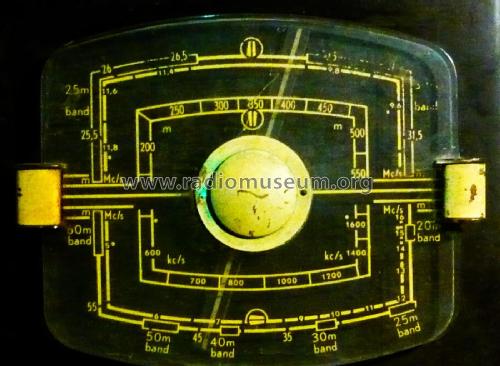

  • MW / OL: 185...550 m
    SW1 / OC1: 19...61 m (16...4,8 MHz)
    SW2 / OC2: 25.3...31.7 MHz (11.8...9.5 MHz)

    Country of origin currently unknown.

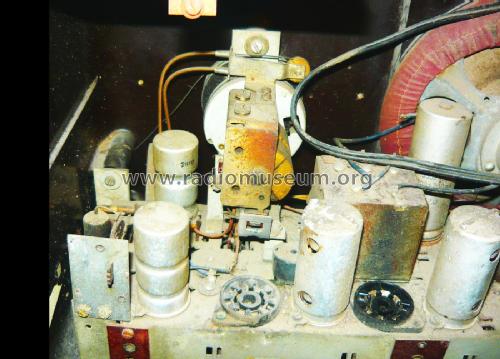

    Chassis layout similar to the Dutch models

    • BX380A with wavebands LW, MW and SW
    • BX388A with wavebands 2x SW and MW

    Loudspeaker code: 4923925  38491
    Transformer code: 168 63 319

  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)

 Collections | Museums | Literature

Collections

The model unknown 3 band radio is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips; Eindhoven: unknown 3 band radio

Threads: 1 | Posts: 2

Dear radio friends,



I think this unknown set is a Philips BX388A. Please compare the 2 pictures.



Best regards

Attachments

Georges Van Campenhout, 14.Nov.16
