Pionier (Pionnier) V4A

Pionier V4A; Philips; Eindhoven (ID = 1516861) Radio

Pionier V4A; Philips; Eindhoven (ID = 1516862) Radio

Pionier V4A; Philips; Eindhoven (ID = 1919956) Radio

Pionier V4A; Philips; Eindhoven (ID = 1919957) Radio

Pionier V4A; Philips; Eindhoven (ID = 1919958) Radio

Pionier V4A; Philips; Eindhoven (ID = 1919959) Radio

Pionier V4A; Philips; Eindhoven (ID = 1919960) Radio

Pionier V4A; Philips; Eindhoven (ID = 1919961) Radio

Pionier V4A; Philips; Eindhoven (ID = 1919962) Radio

Pionier V4A; Philips; Eindhoven (ID = 1919963) Radio
Pionier V4A; Philips; Eindhoven (ID = 2089534) Radio Pionier V4A; Philips; Eindhoven (ID = 2089535) Radio
Pionier V4A; Philips; Eindhoven (ID = 2089536) Radio Pionier V4A; Philips; Eindhoven (ID = 2089537) Radio
Pionier V4A; Philips; Eindhoven (ID = 2089538) Radio Pionier V4A; Philips; Eindhoven (ID = 1515024) Radio
Pionier V4A; Philips; Eindhoven (ID = 1002426) Radio Pionier V4A; Philips; Eindhoven (ID = 1002427) Radio
Pionier V4A; Philips; Eindhoven (ID = 1002428) Radio Pionier V4A; Philips; Eindhoven (ID = 1002429) Radio
Use red slider bar for more.
Pionier V4A; Philips; Eindhoven (ID = 2089534) Radio

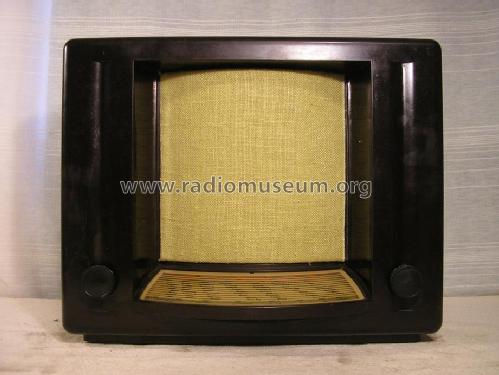

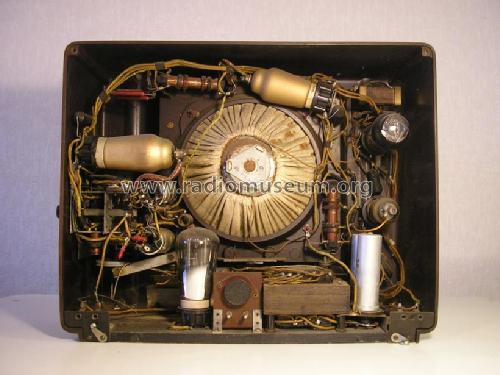

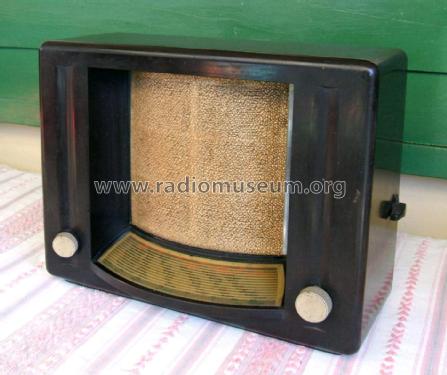

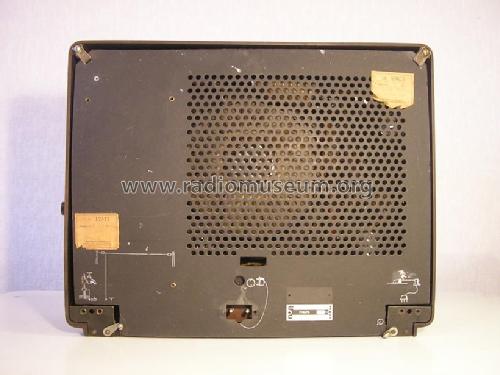

Philips; Eindhoven: Pionier V4A [Radio] ID = 2089534 1400x1172
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pionier (Pionnier) V4A, Philips; Eindhoven (tubes international!); Miniwatt:
Thanks for the photos, Mr Joseph Csige!

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner

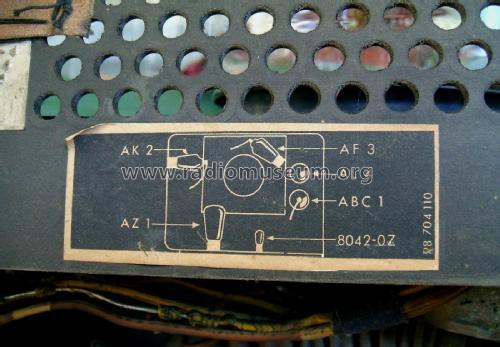

Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Pionier V4A - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 330 x 150 mm / 16.5 x 13 x 5.9 inch
Notes
Octode-Super. 3 Band reception:
  • LW: 725 - 1975 m.
  • BC: 198 - 585 m.
  • SW: 16,7 - 51 m.
Tuning scale light bulb type: 8042-07 (4V, 500mA).
Loudspeaker Philips type 9617. Connector for a pick-up.

There is also a model V4A-32 with I.F. = 125 KHz but otherwise identical.

Corresponds to French models Radiola Pionnier A and Philips Pionnier V4A.
Mentioned in -- Original-techn. papers.

Model page created by a member from B. See "Data change" for further contributors.
