Voltmeter GM4132; Philips Electro (ID = 245709) Equipment
Philips Electro: Voltmeter GM4132 [Equipment] ID = 245709 404x547
Select picture or schematic to display from thumbnails on the right and click for download.
For model Voltmeter GM4132, Philips Electro Spezial, Berlin (PESB); Elektro Spezial, Hamburg

Country:  Germany
Manufacturer / Brand:  Philips Electro Spezial, Berlin (PESB); Elektro Spezial, Hamburg
alternative name

Philips Elektro Sp.
Year: 1940 ? Category: Service- or Lab Equipment

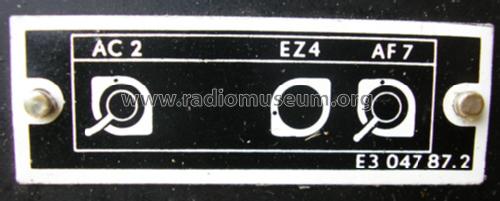

Valves / Tubes 3: AC2 AF7 EZ4
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Voltmeter GM4132 - Philips Electro Spezial,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 230 x 290 x 110 mm / 9.1 x 11.4 x 4.3 inch
Notes

NF-Röhrenvoltmeter für die Tonfrequenzen. Messbereich 0,01 V .... 300 V Vollausschlag  in 10 Bereichen, 25 Hz ... 15 kHz. (Voltage from 0,01 V to 300 V in 10 ranges.)

Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
Price in first year of sale 900.00 RM
Collectors' prices
Source of data - - Data from my own collection
Mentioned in Radio-Mentor (1942, H.6)

Model page created by Ernst Rykkje. See "Data change" for further contributors.
