X25K121 /00 /70 Ch= K6 (SB)

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1875443) Television

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1875444) Television

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1875445) Television

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1875446) Television

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1874734) Television

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1874990) Television

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1874991) Television

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1874992) Television

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1874993) Television

X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 1874994) Television
X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 436350) Television
Use red slider bar for more.
X25K121 /00 /70 Ch= K6 ; Philips - Österreich (ID = 436350) Television

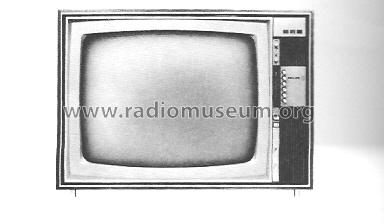

Philips - Österreich: X25K121 /00 /70 Ch= K6 [Television] ID = 436350 384x224
Select picture or schematic to display from thumbnails on the right and click for download.
For model X25K121 /00 /70 Ch= K6 (SB), Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1969/1968 Category: Television Receiver (TV) or Monitor
Valves / Tubes 27: EF184 EF183 EF183 PCF200 PFL200 PCL86 EF184 PCF201 EF184 PCF802 EF184 PCC85 PCF200 PCF200 PCF200 PCH200 PCC85 PL508 PCC85 PCF802 PL505 PL500 PY500 DY51 GY501 PD500 A63-11X
Semiconductors (the count is only for transistors) 12: AF139 AF239 AF139 AC128 BF115 BF115 AC125 BF195 BF195 BC107 BC107 BC107
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: X25K121 /00 /70 Ch= K6 - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 710 x 500 x 600 mm / 28 x 19.7 x 23.6 inch
Notes

Empfangsbereich: VHF + UHF.
2 Ausführungen: /00=dunkel hochglänzend; /70=hell matt.

Verschiedene Chassisausführungen:
Von A02 bis A08,
von A09 bis A19,
von A20 bis A45
und ab A46, siehe Datenblätter.

Net weight (2.2 lb = 1 kg) 50 kg / 110 lb 2.1 oz (110.132 lb)

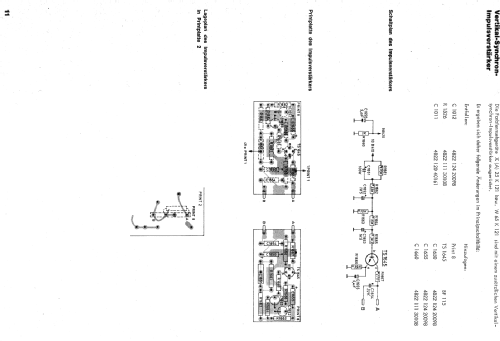

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
