Multiinductancia "La Llave del Mundo" 335A

Multiinductancia 'La Llave del Mundo' 335A; Philips Ibérica, (ID = 2430440) Radio

Multiinductancia 'La Llave del Mundo' 335A; Philips Ibérica, (ID = 2430441) Radio

Multiinductancia 'La Llave del Mundo' 335A; Philips Ibérica, (ID = 2430442) Radio

Multiinductancia 'La Llave del Mundo' 335A; Philips Ibérica, (ID = 2430443) Radio

Multiinductancia 'La Llave del Mundo' 335A; Philips Ibérica, (ID = 1994894) Radio
Multiinductancia 'La Llave del Mundo' 335A; Philips Ibérica, (ID = 1334840) Radio Multiinductancia 'La Llave del Mundo' 335A; Philips Ibérica, (ID = 1334841) Radio
Multiinductancia 'La Llave del Mundo' 335A; Philips Ibérica, (ID = 196245) Radio
Use red slider bar for more.
Multiinductancia 'La Llave del Mundo' 335A; Philips Ibérica, (ID = 1334840) Radio
Philips Ibérica,: Multiinductancia "La Llave del Mundo" 335A [Radio] ID = 1334840 933x1241
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multiinductancia 'La Llave del Mundo' 335A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona:
Revista Radio-Técnica junio 1935

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF3 AK2 AF3 ABC1 AL2 1805
Main principle Superhet with RF-stage; ZF/IF 475 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Multiinductancia "La Llave del Mundo" 335A - Philips Ibérica, COPRESA,

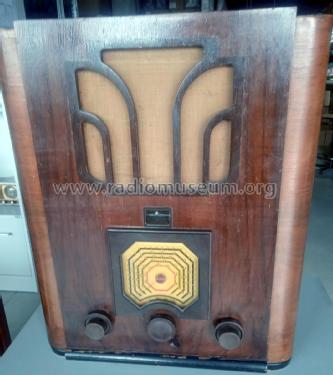

Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

OL: 750-2000 m
OM: 200-570 m
OC1: 80-220 m
OC2: 35-90 m
OC3: 13-39 m.

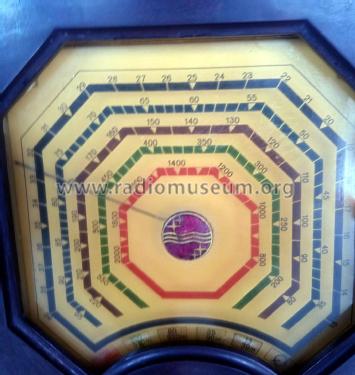

Indicador de sintonia con aguja.
Dial lamps: 8059 (6V/0,1A); 2x 8046 (6V/0,5A).

Price in first year of sale 1'225.00 Pesetas
Mentioned in Campaña Renovación - cuadro de reemplazos 1955
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) -- Original prospect or advert

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
