- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Philips Electrical Industries of New Zealand Ltd.; Wellington
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339742
Trademe NZ Listing #4212376068.

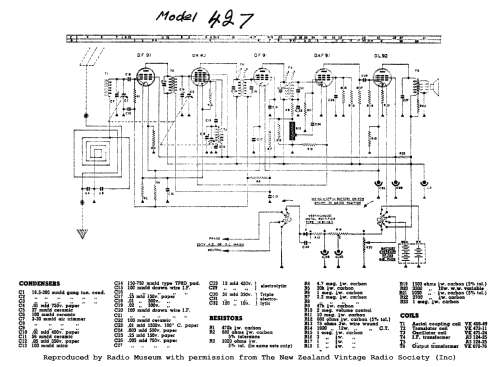

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 0
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 230 or 90 & 9 Volt
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 427 - Philips Electrical Industries
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
5-Valve superhet with RF stage broadcast (MW) portable receiver.
3 Power supply options
- AC mains
- DC mains
- 90 & 9 volt Eveready No. 752 dual voltage single battery.
Westinghouse metal rectifier.
- Price in first year of sale
- 33.50 NZ £
- Mentioned in
- -- Original prospect or advert (Press 24 November 1952 Page 12)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
