- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Philips Electrical Industries of New Zealand Ltd.; Wellington
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 346819

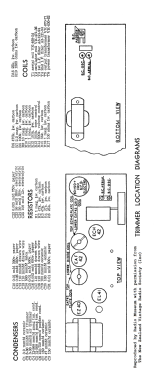

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: BZ247A - Philips Electrical Industries
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 398 x 252 x 185 mm / 15.7 x 9.9 x 7.3 inch
- Notes
-
4 valve broadcast (MW) superhet mantel model receiver.
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
