• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162603

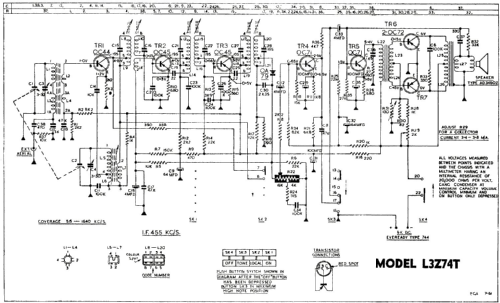

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

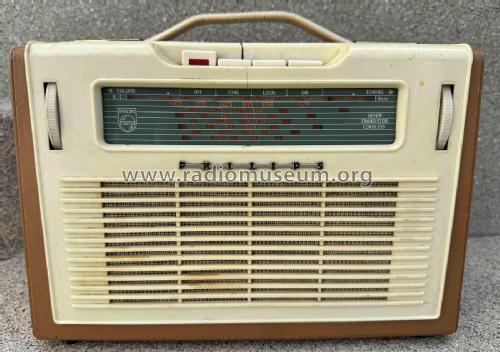

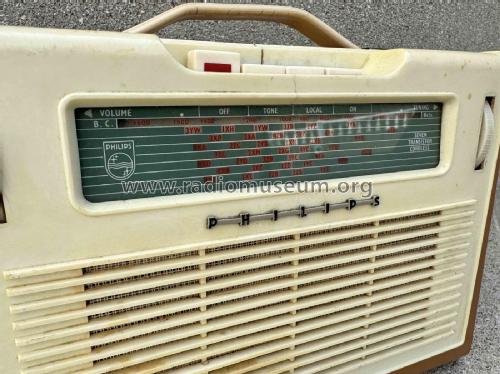

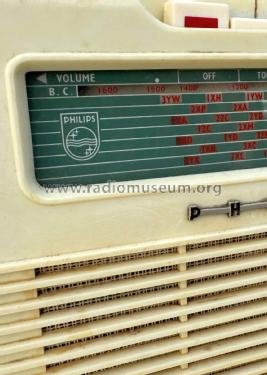

• Model: L3Z74T - Philips Electrical Industries

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Philips L3Z74T;
  See also some European models of the same era like L3X72T, L3X78T and L3LN78T/10. For the North American market, we show the model Norelco L3X78T/01.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
