• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1951/1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100467

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• EF42 ECC40 EF42 EF42 EM4 EF42 EB41 ECH42 EBF32 ECC40 EL41 EL41 AZ2

• Main principle
• Superheterodyne (common); ZF/IF 470/10500 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 130-270 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

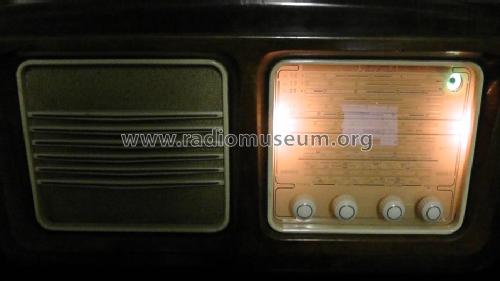

• Model: 1101R-1102 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 730 x 360 x 300 mm / 28.7 x 14.2 x 11.8 inch

• Notes

• Ricevitore AM/FM. Gamme d'onda: 2 x OM, 6 x OC, FM.

  Early Italian AM/FM radio receiver.

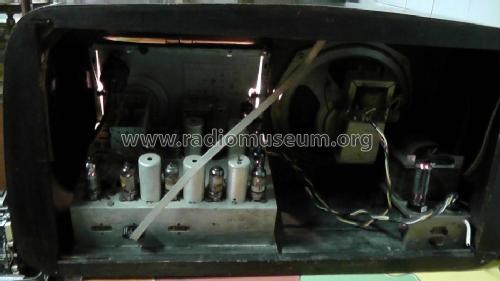

  Separate RF/IF units for AM and FM reception.

  Antenna fittizia per AM realizzata con il collegamento della rete elettrica di alimentazione alla presa di antenna dell'apparecchio tramite un condensatore di isolamento. Inserendo l’antenna esterna il collegamento viene disattivato.
  Presa per antenna esterna per FM.
  Sintonia ad induttori variabili.
  Regolatore di tono.

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• -- Schematic (Il Radio Libro D.E. Ravalico 13a edizione Hoepli editore 1952.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
