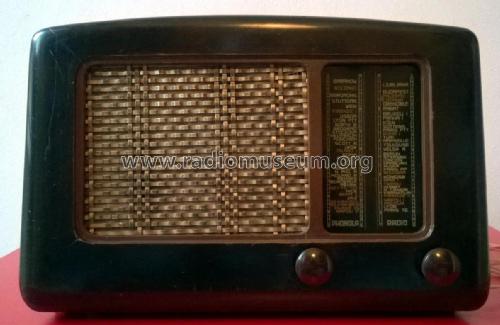

401; Phonola SA, FIMI; (ID = 1821855) Radio 401; Phonola SA, FIMI; (ID = 1821856) Radio
401; Phonola SA, FIMI; (ID = 1821857) Radio 401; Phonola SA, FIMI; (ID = 1821858) Radio
401; Phonola SA, FIMI; (ID = 1821859) Radio 401; Phonola SA, FIMI; (ID = 1821860) Radio
401; Phonola SA, FIMI; (ID = 1821861) Radio 401; Phonola SA, FIMI; (ID = 1821862) Radio
Use red slider bar for more.
401; Phonola SA, FIMI; (ID = 2371809) Radio
Phonola SA, FIMI;: 401 [Radio] ID = 2371809 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 401, Phonola SA, FIMI; Saronno (VA):
Le foto dell'apparecchio già presenti erano state inviate da me tempo fa.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EK2 6P7G EBL1 WE54 or AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 180; 220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 401 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 350 x 230 x 180 mm / 13.8 x 9.1 x 7.1 inch
Notes Serie Neosinto.
Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
