407A

407A; Phonola SA, FIMI; (ID = 382854) Radio

407A; Phonola SA, FIMI; (ID = 382863) Radio

407A; Phonola SA, FIMI; (ID = 382864) Radio

407A; Phonola SA, FIMI; (ID = 382865) Radio
407A; Phonola SA, FIMI; (ID = 309864) Radio 407A; Phonola SA, FIMI; (ID = 309865) Radio
407A; Phonola SA, FIMI; (ID = 877469) Radio 407A; Phonola SA, FIMI; (ID = 877468) Radio

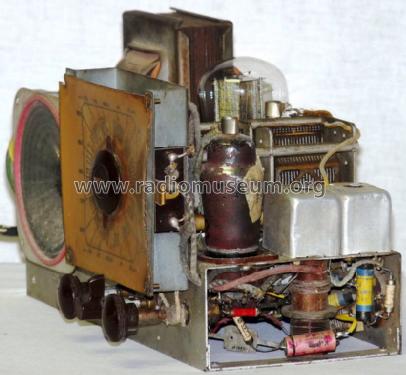

407A; Phonola SA, FIMI; (ID = 877470) Radio 407A; Phonola SA, FIMI; (ID = 877464) Radio
407A; Phonola SA, FIMI; (ID = 309866) Radio 407A; Phonola SA, FIMI; (ID = 309867) Radio
407A; Phonola SA, FIMI; (ID = 877465) Radio 407A; Phonola SA, FIMI; (ID = 877466) Radio
Use red slider bar for more.
407A; Phonola SA, FIMI; (ID = 309864) Radio
Phonola SA, FIMI;: 407A [Radio] ID = 309864 933x553
Select picture or schematic to display from thumbnails on the right and click for download.
For model 407A, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1941 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH4 ECH4 EBL1 AZ1 or WE54
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 100; 140; 200; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16.5 cm = 6.5 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 407A - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 350 x 200 x 180 mm / 13.8 x 7.9 x 7.1 inch
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.

Model page created by Heinz Moser. See "Data change" for further contributors.
