5515 Type 2

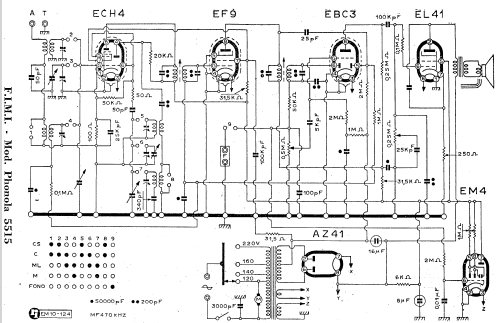

5515 Type 2; Phonola SA, FIMI; (ID = 657015) Radio
5515 Type 2; Phonola SA, FIMI; (ID = 1228517) Radio 5515 Type 2; Phonola SA, FIMI; (ID = 657011) Radio
5515 Type 2; Phonola SA, FIMI; (ID = 657012) Radio 5515 Type 2; Phonola SA, FIMI; (ID = 657013) Radio
5515 Type 2; Phonola SA, FIMI; (ID = 657014) Radio 5515 Type 2; Phonola SA, FIMI; (ID = 926492) Radio
5515 Type 2; Phonola SA, FIMI; (ID = 1228518) Radio 5515 Type 2; Phonola SA, FIMI; (ID = 1228520) Radio
Use red slider bar for more.
5515 Type 2; Phonola SA, FIMI; (ID = 1228517) Radio
Phonola SA, FIMI;: 5515 Type 2 [Radio] ID = 1228517 700x371
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5515 Type 2, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1950–1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH4 EF9 EBC3 EL41 EM4 AZ41
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: 5515 Type 2 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 640 x 330 x 250 mm / 25.2 x 13 x 9.8 inch
Notes Gamme d'onda: due gamme di onde medie, corte, cortissime
Mentioned in Nuovo catalogo Antique Radio Vol.2
Literature/Schematics (1) Il Manuale del Radiomeccanico Angeletti pag.320

Model page created by Fabio Masetti. See "Data change" for further contributors.
