552

552; Phonola SA, FIMI; (ID = 181822) Radio

552; Phonola SA, FIMI; (ID = 181823) Radio
Use red slider bar for more.
552; Phonola SA, FIMI; (ID = 181822) Radio

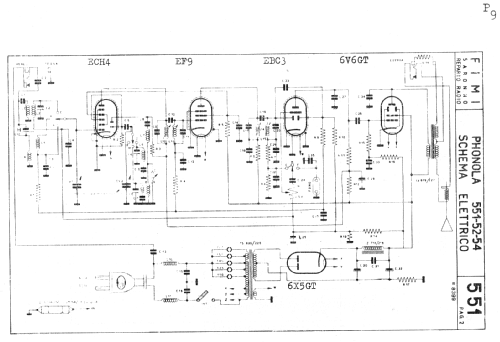

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1947 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EF9 EBC3 6V6GT 6X5GT
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: 552 - Phonola SA, FIMI; Saronno VA
Mentioned in Collezione di Schemi, Scuola Radio Elettra 1953
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. P9-P10)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
Here you find 669 models, 388 with images and 485 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
