5555/B

5555/B; Phonola SA, FIMI; (ID = 120898) Radio
5555/B; Phonola SA, FIMI; (ID = 1850271) Radio 5555/B; Phonola SA, FIMI; (ID = 102070) Radio
5555/B; Phonola SA, FIMI; (ID = 102071) Radio 5555/B; Phonola SA, FIMI; (ID = 1850272) Radio
5555/B; Phonola SA, FIMI; (ID = 1850273) Radio
Use red slider bar for more.

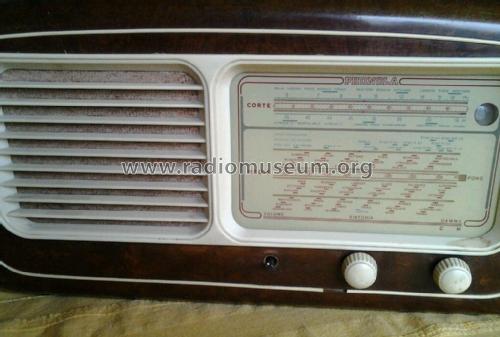

5555/B; Phonola SA, FIMI; (ID = 1850271) Radio
Phonola SA, FIMI;: 5555/B [Radio] ID = 1850271 1002x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5555/B, Phonola SA, FIMI; Saronno (VA):
eBay-Artikelnummer: 261937499149

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UF41 UBC41 UL41 EM4 UY41
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5555/B - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 300 x 220 mm / 23.6 x 11.8 x 8.7 inch
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
Here you find 686 models, 409 with images and 503 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
