• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98239

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

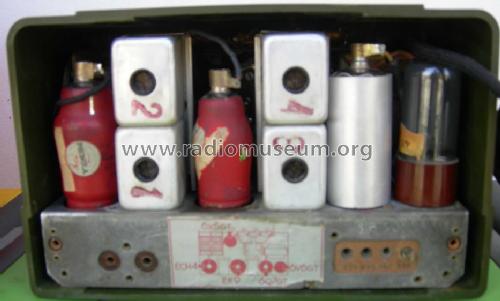

• ECH4 EF9 6Q7GT 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 577 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 220 x 145 x 125 mm / 8.7 x 5.7 x 4.9 inch

• Notes

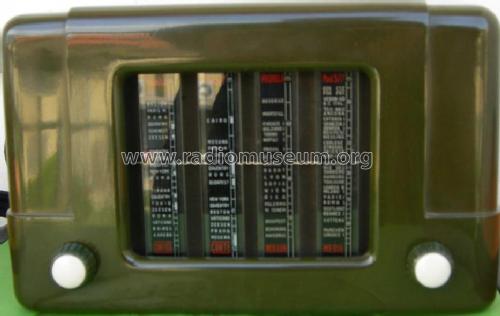

• Gamme d'onda: medie, medio-lunghe, corte, cortissime. Piccole dimensioni. Mobiletto in diverse varianti di colore.

  Wave bands: 2x BC, 2x SW. Small size. Several color variants.

  La rete elettrica viene utilizzata come antenna. Inserendo l'antenna esterna il collegamento viene disconnesso.

  Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 218)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
