- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 115960

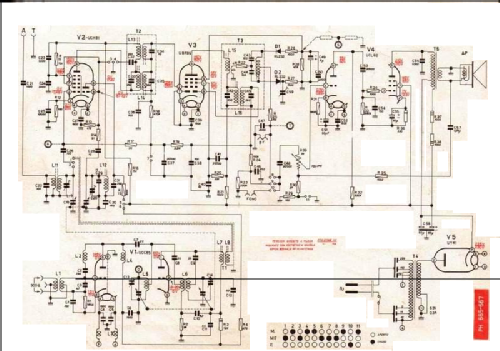

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 665 - Phonola SA, FIMI; Saronno VA
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 160 x 135 mm / 10.6 x 6.3 x 5.3 inch
- Notes
- 2 diodi al germanio. Serie ANIE MF.
- Price in first year of sale
- 32,000.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- -- Original prospect or advert (Radioricevitori d'alta classe - Phonola - 1959)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
- Other Models
-
Here you find 715 models, 454 with images and 542 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
