763 (Ch= 740)

763 ; Phonola SA, FIMI; (ID = 743373) Radio 763 ; Phonola SA, FIMI; (ID = 743371) Radio
763 ; Phonola SA, FIMI; (ID = 1997385) Radio 763 ; Phonola SA, FIMI; (ID = 1997386) Radio
763 ; Phonola SA, FIMI; (ID = 1997387) Radio 763 ; Phonola SA, FIMI; (ID = 1997388) Radio
763 ; Phonola SA, FIMI; (ID = 1997389) Radio 763 ; Phonola SA, FIMI; (ID = 1997390) Radio
763 ; Phonola SA, FIMI; (ID = 1997391) Radio
Use red slider bar for more.

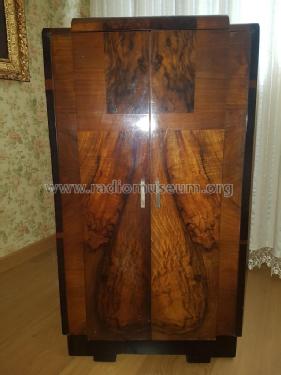

763 ; Phonola SA, FIMI; (ID = 743373) Radio
Phonola SA, FIMI;: 763 [Radio] ID = 743373 375x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 763 (Ch= 740), Phonola SA, FIMI; Saronno (VA):
Dal mensile anni 30' -Rivista ALATI-

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK1 AF2 75 42 42 80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 5 W (unknown quality)
from Radiomuseum.org Model: 763 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 530 x 940 x 400 mm / 20.9 x 37 x 15.7 inch
Notes

Serie Ferrosite. Scala luminosa inclinabile a compasso.

Price in first year of sale 2'700.00 ITL
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in Guida Pratica Antique Radio III (2000) (A. Battocchio, La bella radio, Mosè Edizioni)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
Here you find 669 models, 388 with images and 485 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
