• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1937 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200965

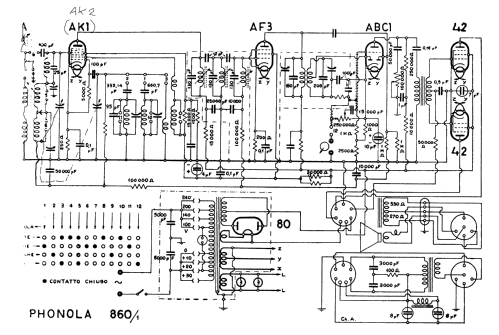

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• WE32 WE33 WE37 42 42 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 26 cm = 10.2 inch

• Material
• Wooden case

• from Radiomuseum.org

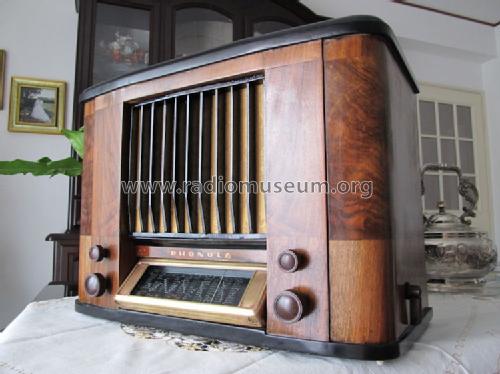

• Model: 860-2 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 530 x 390 x 280 mm / 20.9 x 15.4 x 11 inch

• Net weight (2.2 lb = 1 kg)
• 17.8 kg / 39 lb 3.3 oz (39.207 lb)

• Author
• Model page created by Giovanni Scalavino. See "Data change" for further contributors.
