Clipper RV697

Clipper RV697; Phonola SA, FIMI; (ID = 2072681) Radio

Clipper RV697; Phonola SA, FIMI; (ID = 2072682) Radio
Use red slider bar for more.

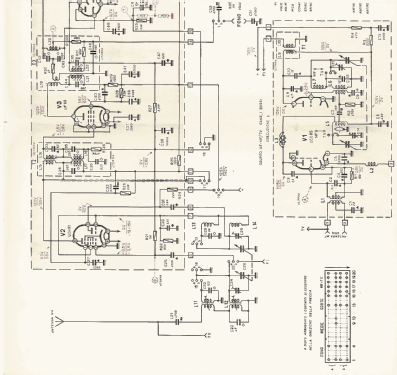

Clipper RV697; Phonola SA, FIMI; (ID = 2072681) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCC85 UCH81 UF89 UABC80 UL84 Selenium-Rectifier
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Clipper RV697 - Phonola SA, FIMI; Saronno VA
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 320 x 180 x 130 mm / 12.6 x 7.1 x 5.1 inch
Price in first year of sale 26,900.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Catalogo ANIE (Annuario ANIE 1963)
Literature/Schematics (1) Guida Pratica Antique Radio IV (2001)

Model page created by Enrico Bonisolo. See "Data change" for further contributors.
