Minny 2 RT7155 BC113

Phonola SA, FIMI; Saronno (VA)

  • Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 175062

Click on the schematic thumbnail to request the schematic as a free document.

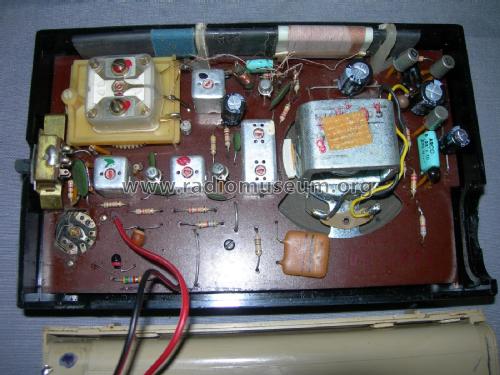

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).

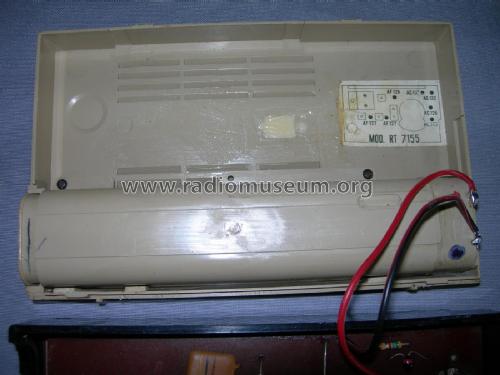

  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.8 cm = 3.1 inch
  • Power out
  • 0.32 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Minny 2 RT7155 [BC113] - Phonola SA, FIMI; Saronno VA
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 166 x 105 x 47 mm / 6.5 x 4.1 x 1.9 inch
  • Notes
  • Borsa in cuoio

    Con antenna incorporata in ferrite e controllo toni (alti - bassi).

    There are 2 models with the same name but with a different transistor in position TR4:
    one with BC113 (NPN), the other with AC126 (PNP).

  • Net weight (2.2 lb = 1 kg)
  • 0.520 kg / 1 lb 2.3 oz (1.145 lb)
  • Mentioned in
  • Catalogo ANIE 1965-66
  • Literature/Schematics (1)
  • Manuale di Servizio Assistenza Tecnica - PHONOLA
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
