RT-1083 CID

RT-1083 CID; Phonola SA, FIMI; (ID = 738861) Radio

RT-1083 CID; Phonola SA, FIMI; (ID = 738862) Radio

RT-1083 CID; Phonola SA, FIMI; (ID = 738863) Radio

RT-1083 CID; Phonola SA, FIMI; (ID = 738864) Radio
RT-1083 CID; Phonola SA, FIMI; (ID = 2342535) Radio RT-1083 CID; Phonola SA, FIMI; (ID = 2342534) Radio
RT-1083 CID; Phonola SA, FIMI; (ID = 2342533) Radio RT-1083 CID; Phonola SA, FIMI; (ID = 2342536) Radio

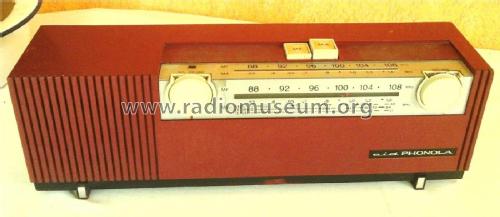

RT-1083 CID; Phonola SA, FIMI; (ID = 2177547) Radio RT-1083 CID; Phonola SA, FIMI; (ID = 2177548) Radio
RT-1083 CID; Phonola SA, FIMI; (ID = 2177546) Radio RT-1083 CID; Phonola SA, FIMI; (ID = 2342537) Radio
Use red slider bar for more.
RT-1083 CID; Phonola SA, FIMI; (ID = 2342535) Radio
Phonola SA, FIMI;: RT-1083 CID [Radio] ID = 2342535 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model RT-1083 CID, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF121 AF115 AF121 AF126 AF126 AF121 AC127 AC128 AC128 AC127
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: RT-1083 CID - Phonola SA, FIMI; Saronno VA
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 345 x 110 x 78 mm / 13.6 x 4.3 x 3.1 inch
Notes

controllo volume - commutatori AM/FM - spia lumionosa accensione - antenna a fili esterna.

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Literature/Schematics (1) -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
