Strato-Cruiser 9 Transistor AM-FM T901

Phonola SA, FIMI; Saronno (VA)

  • Year
  • 1963 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 178841

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

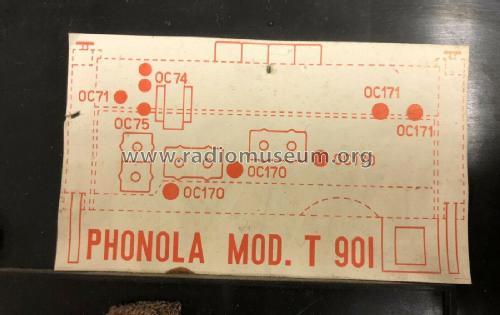

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: Strato-Cruiser 9 Transistor AM-FM T901 - Phonola SA, FIMI; Saronno VA
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Literature/Schematics (1)
  • -- Schematic (Schemario di Apparecchi a Transistori Vol. 3° R. Rosati)
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
