- Country
- Canada
- Manufacturer / Brand
- Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177652

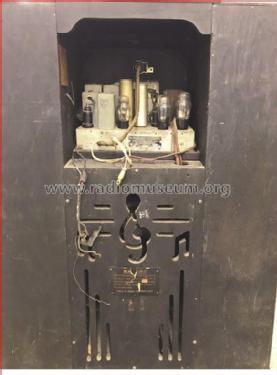

Back of Dom. Electrohome Phonola 6275P
Chassis of Dom. Eletrohome 6275P
Label for Dom. Electrohome Phonola 6275P
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 6725-P - Electrohome Dominion
- Notes
- Tuning eye.
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Phonola Pages 51, 52
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
