195 ; Pilot Electric Mfg. (ID = 621529) Radio
Pilot Electric Mfg.: 195 [Radio] ID = 621529 931x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 195, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):
Aus der Sammlung von Thomas Bollinger, CH - 8222 Beringen

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner

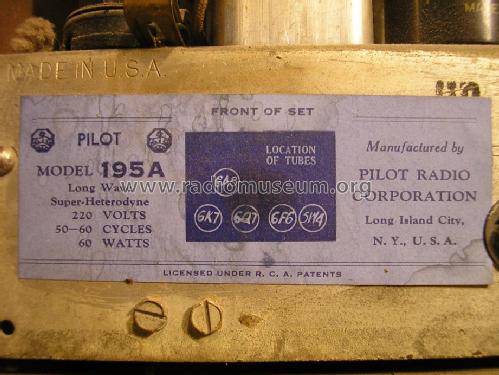

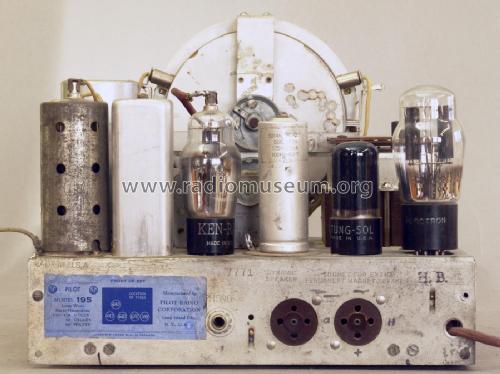

Valves / Tubes 5: 6A8 6K7 6Q7 6F6 5W4

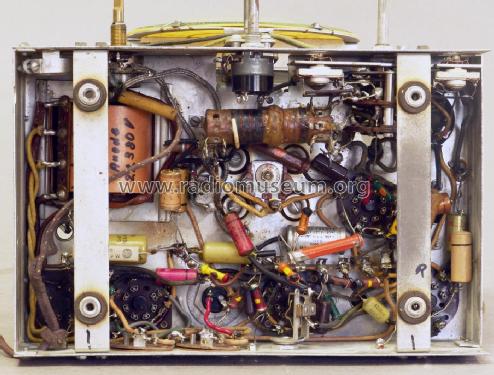

Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)

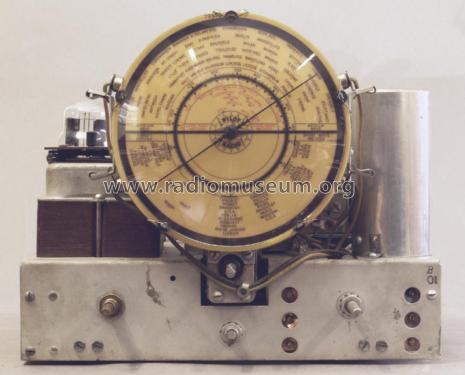

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 195 - Pilot Electric Mfg. Co. Radio

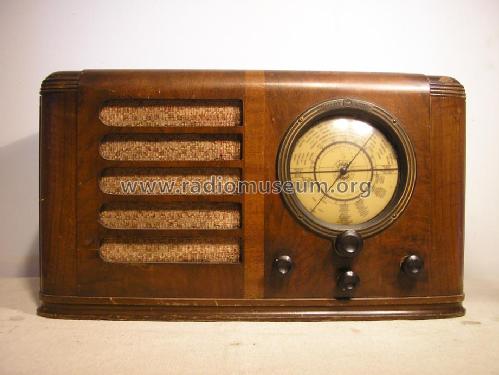

Material Wooden case
Collectors' prices
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before


All listed radios etc. from Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
Here you find 501 models, 221 with images and 371 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
