Dragon Monarch L 8 B

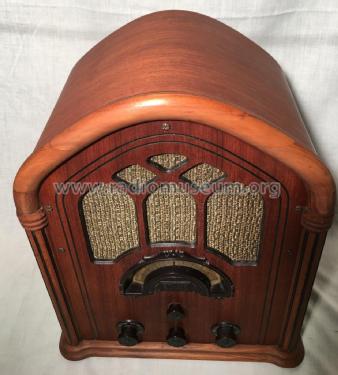

Dragon Monarch L 8 B; Pilot Electric Mfg. (ID = 2182331) Radio Dragon Monarch L 8 B; Pilot Electric Mfg. (ID = 2182333) Radio
Dragon Monarch L 8 B; Pilot Electric Mfg. (ID = 2182334) Radio Dragon Monarch L 8 B; Pilot Electric Mfg. (ID = 2182332) Radio
Dragon Monarch L 8 B; Pilot Electric Mfg. (ID = 2182335) Radio
Use red slider bar for more.

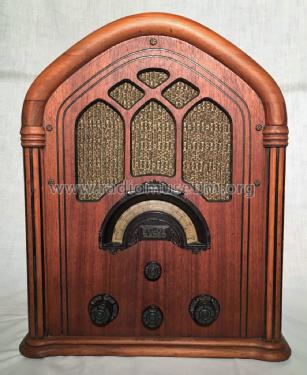

Dragon Monarch L 8 B; Pilot Electric Mfg. (ID = 2182331) Radio
Pilot Electric Mfg.: Dragon Monarch L 8 B [Radio] ID = 2182331 1149x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dragon Monarch L 8 B, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1933 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 56 57 57 58 58 2A5 2A6 5Z3
Main principle Superheterodyne (common); ZF/IF 115 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dragon Monarch L 8 B - Pilot Electric Mfg. Co. Radio
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 15.7 x 11 x 18.9 inch / 399 x 279 x 480 mm
Notes

The Pilot Dragon L 8 B uses the same tube layout as Pilot Dragon Allwave 8 and the same cabinet as the Pilot Dragon 18 8-Tube L-8 and the Pilot L-30-F (but not the same tube layout). It was obtained in Africa and ran on 240 volts and may possibly be an export model.

The band selector switch is marked BC-1-2-3, however besides standard broadcast, it is not known what the range of the other bands are at this time.

Model page created by Jon Cockcroft. See "Data change" for further contributors.
