F-14 DC

F-14 DC ; Pilot Electric Mfg. (ID = 596003) Radio
Use red slider bar for more.
F-14 DC ; Pilot Electric Mfg. (ID = 596003) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1933 ? perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 77 78 35 37 48 48
Main principle Superheterodyne (common); Screengrid 1926-1935
Tuned circuits 5 AM circuit(s)
Details
Power type and voltage Direct Current supply (DC) / 110; 220-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: F-14 DC - Pilot Electric Mfg. Co. Radio
Notes

According tu the tube line up, the model is 1933 or younger.

External source of data Ernst Erb

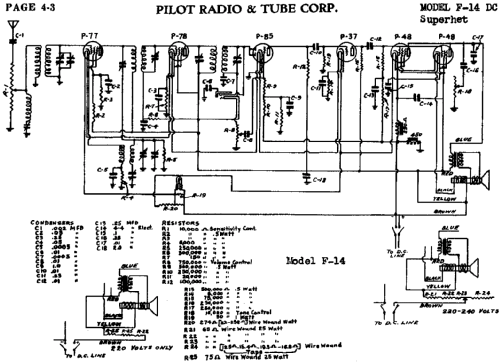

Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
