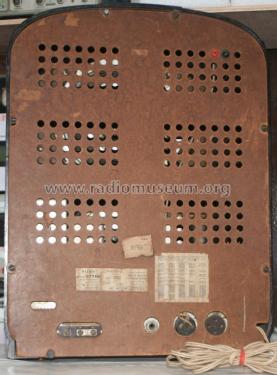

G774B ; Pilot Electric Mfg. (ID = 2574437) Radio
Pilot Electric Mfg.: G774B [Radio] ID = 2574437 1400x1803
Select picture or schematic to display from thumbnails on the right and click for download.
For model G774B, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name

Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1936 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K7 6A8 6K7 6Q7 6F6 5Y3G
schematic requested
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: G774B - Pilot Electric Mfg. Co. Radio
Material Bakelite case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 14 x 18 x 11 inch / 356 x 457 x 279 mm
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)

Model page created by Uday Kalburgi. See "Data change" for further contributors.
