• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 172560

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6BA6 6U8 6AB4 6BA6 EM81 6AU6 6AL5 12AX7 12AX7 12AX7 EL84 EL84 6X4 EZ81

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: HF-30 [Late] - Pilot Electric Mfg. Co. Radio

• Shape
• Console with any shape - in general

• Notes
• The Pilot Radio Corp. Model HF-30 is an AC operated 14 Tube FM-AM Receiver with 4 Speed Automatic Record Player.

• Literature/Schematics (1)

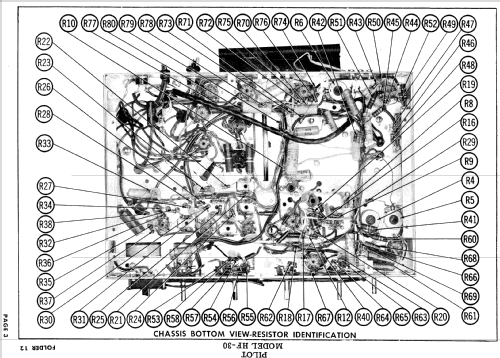

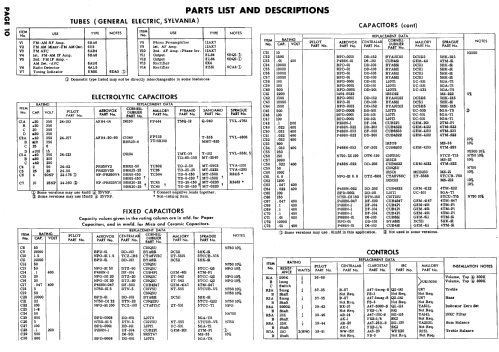

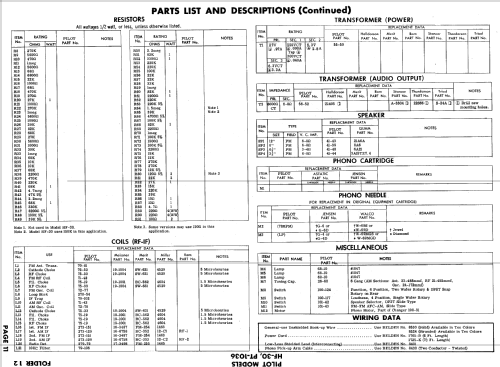

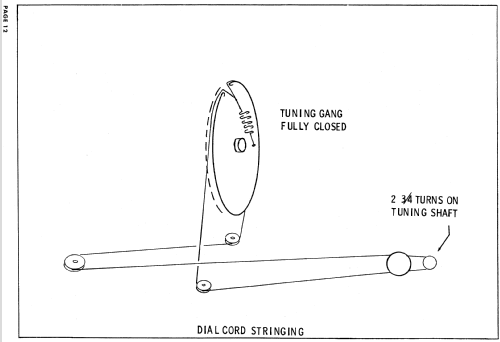

• Photofact Folder, Howard W. SAMS (Date 11-58, Set 421, Folder 12)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
