• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pilot Radio Ltd.; London

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 280339

• Number of Tubes
• 5

• Valves / Tubes
• 6K8G 6Q7G 6K7G 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 451 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Little Maestro Post-War AC - Pilot Radio Ltd.; London

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 7.5 x 5.75 inch / 305 x 191 x 146 mm

• Notes

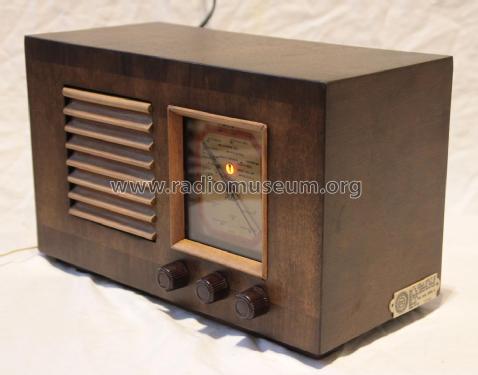

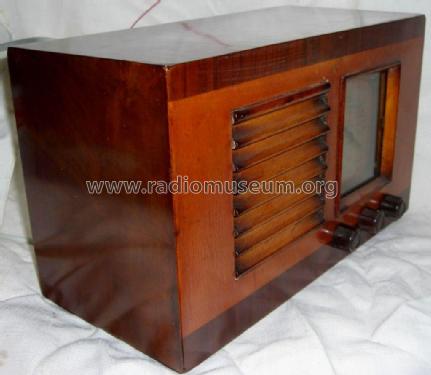

• Wooden cased version of the bakelite Little Maestro Post-War AC model.

• Price in first year of sale
• 15.00 GBP

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (809)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
