• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1959 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 159215

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

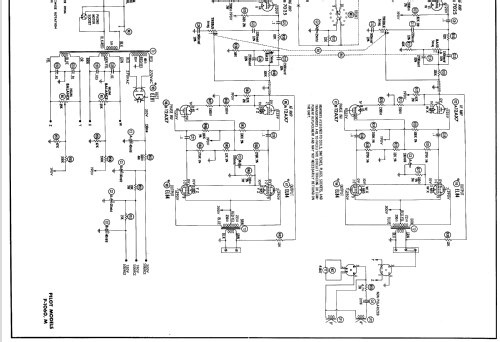

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 7025 7025 12AX7 12AX7 EL84 EL84 EL84 EL84 EZ81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: P-1060M - Pilot Electric Mfg. Co. Radio

• Shape
• Tablemodel, with any shape - general.

• Notes
• The Pilot Radio Model P-1060M is an AC operated 9 Tube Stereo Amplifier with 4 Speed Automatic Record Changer.

• Literature/Schematics (1)

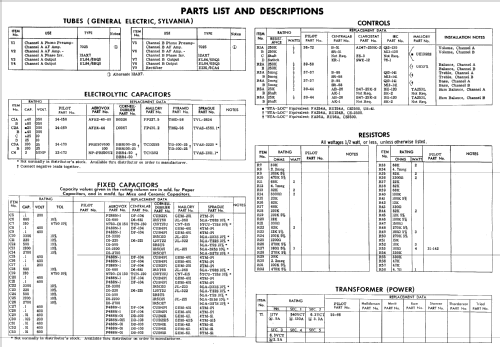

• Photofact Folder, Howard W. SAMS (Date 7-59, Set 450, Folder 12)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
