• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 219447

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 12AX7 12AX7 EL84 EL84 EZ81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 16 W (32 W max.)

• Material
• Metal case

• from Radiomuseum.org

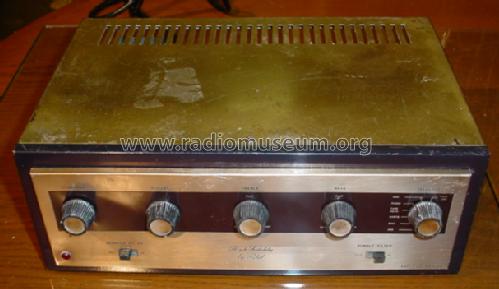

• Model: Pilotone Amplifier AA 903B - Pilot Electric Mfg. Co. Radio

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 13 x 4 x 9 inch / 330 x 102 x 229 mm

• Notes

• Pilot model AA-903B is an AC operated 5 channel audio amplifier.



• Net weight (2.2 lb = 1 kg)
• 17 lb 0 oz (17 lb) / 7.718 kg

• Price in first year of sale
• 79.95 $

• Mentioned in
• Radio Shack Catalog (1959, page 9)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 377 Folder 14 dated 11-57)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
