• Country
• United States of America (USA)

• Manufacturer / Brand
• Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119140

• • alternative name: Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

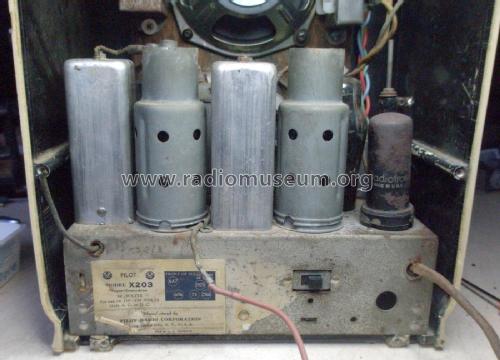

• 6A7 6D6 75 43 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

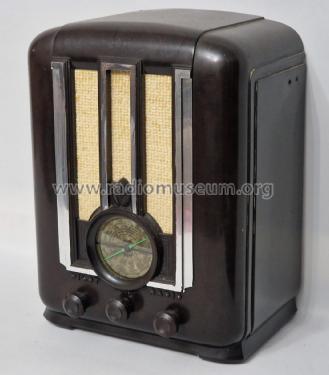

• Model: X-203 [75 tube] - Pilot Electric Mfg. Co. Radio

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 9.3 x 12.6 x 7.1 inch / 236 x 320 x 180 mm

• Notes
• Dial bears stationized call letters.

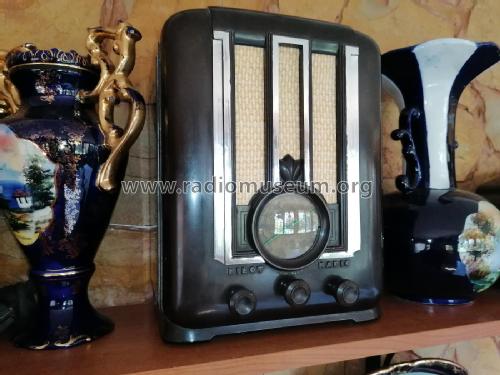

  Brown or white or black with chrome trim around the speaker grille.
  There is also model X203 using a 76 tube, and 203 models as well.

• Source of data
• -- Collector info (Sammler)

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• Machine Age to Jet Age II (page 226.)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
